Removal [11/2015 -]: Procedure

  1. REMOVE UPPER INSTRUMENT PANEL ASSEMBLY

    Refer to REMOVAL [11/2015 -]

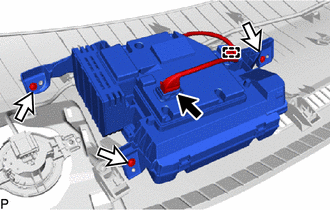

  2. REMOVE METER MIRROR SUB-ASSEMBLY
    1. Disconnect the connector.
      GTY563017Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the clamp.
    3. Remove the 3 screws and meter mirror sub-assembly.
