Reassembly [11/2015 -]: Procedure

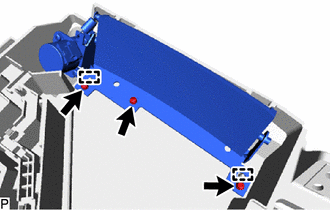

  1. INSTALL NO. 2 COMBINATION METER MIRROR
    1. Engage the 2 guides.
      GTY576490Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the No. 2 combination meter mirror with the 3 screws.
  2. INSTALL COMBINATION METER MIRROR

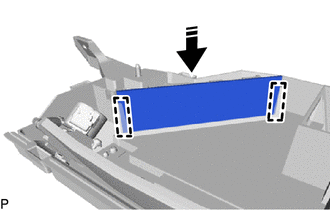

    1. Engage the 2 guides to install the combination meter mirror as shown in the illustration.
      GTY574169Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

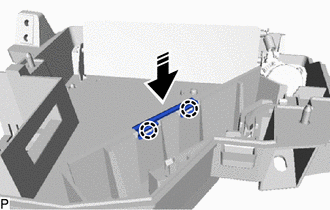

    2. Engage the 2 claws to install the mirror clip and combination meter mirror as shown in the illustration.
      GTY541584Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  3. INSTALL COMBINATION METER WIRE

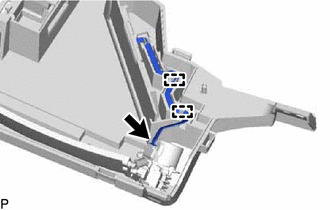

    1. Connect the connector.
      GTY576060Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the 2 clamps to install the combination meter wire.
  4. INSTALL COMBINATION DISPLAY

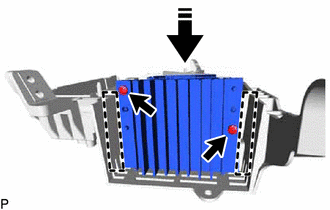

    1. Engage the 2 guides as shown in the illustration.
      GTY575563Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Install the combination display with the 2 screws.

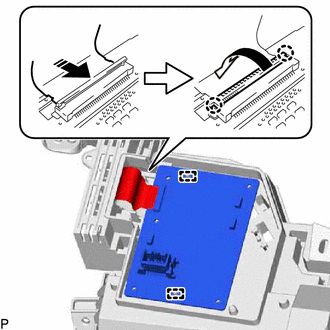

  5. INSTALL COMBINATION METER MIRROR ECU
    1. Engage the 2 guides.
      GTY570625Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Connect the connector as shown in the illustration.
      NOTE:

      Be sure to connect the connector securely.

    3. Push down the holder to engage the 2 claws as shown in the illustration.
      NOTE:

      Be sure to engage the claws securely.

    4. Connect the 2 connectors to install the combination meter mirror ECU.
      GTY539229Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL NO. 1 COMBINATION METER MIRROR PLATE

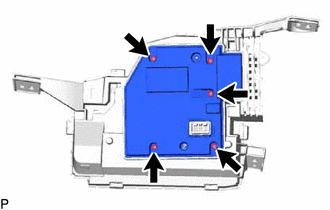

    1. Install the No. 1 combination meter mirror plate with the 5 screws.
      GTY604251Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL NO. 1 COMBINATION METER MIRROR CASE

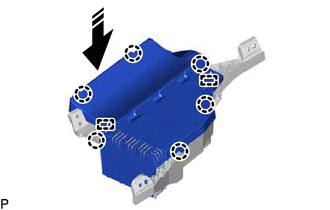

    1. Engage the 2 guides and 6 claws as shown in the illustration.
      GTY560425Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

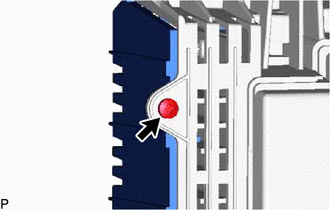

    2. Install the No. 1 combination meter mirror case with the screw.
      GTY583357Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
