Components [11/2015 -]

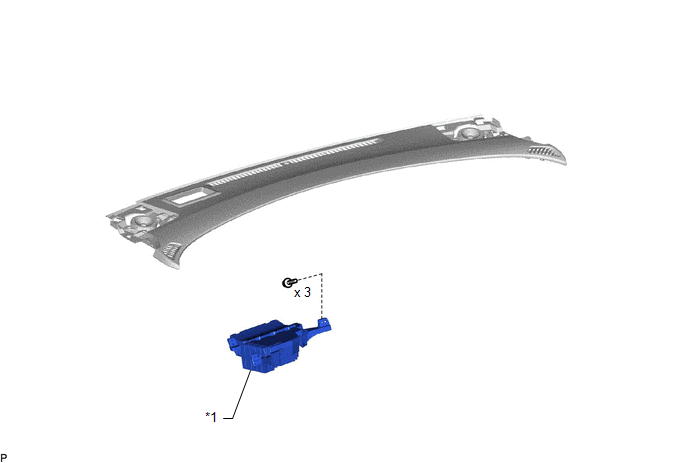

Fig 1: Headup Display Replacement Components (1 Of 2)
GTY552705Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 METER MIRROR SUB-ASSEMBLY - -

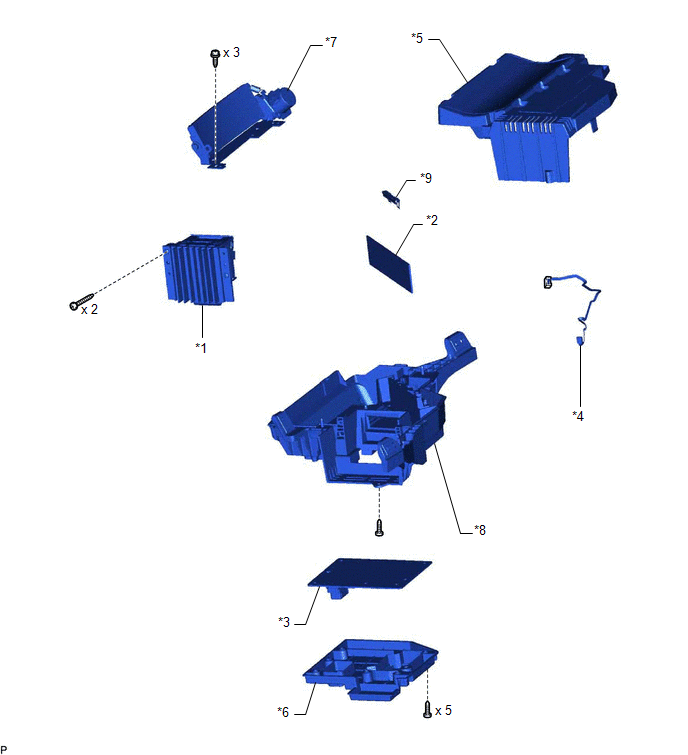

Fig 2: Headup Display Replacement Components (2 Of 2)
GTY592193Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 COMBINATION DISPLAY *2 COMBINATION METER MIRROR
*3 COMBINATION METER MIRROR ECU *4 COMBINATION METER WIRE
*5 NO. 1 COMBINATION METER MIRROR CASE *6 NO. 1 COMBINATION METER MIRROR PLATE
*7 NO. 2 COMBINATION METER MIRROR *8 NO. 2 COMBINATION METER MIRROR CASE
*9 MIRROR CLIP - -
