Installation [11/2015 -]: Procedure

  1. INSTALL HEADUP DISPLAY SWITCH (NO. 2 COMBINATION SWITCH ASSEMBLY)

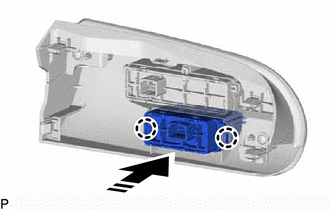

    1. Engage the 2 claws to install the headup display switch (No. 2 combination switch assembly) as shown in the illustration.
      GTY605953Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  2. INSTALL INSTRUMENT CLUSTER FINISH PANEL GARNISH ASSEMBLY

    Refer to PROCEDURE - Step 25 [11/2015 - 11/2017] , or refer to PROCEDURE - Step 27 [11/2017 - 08/2019] , or refer to PROCEDURE - Step 26 [08/2019 -]
