Removal [06/2015 - 11/2018]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.

    Refer to PRECAUTION [06/2015 - ]

  2. REMOVE LUGGAGE TRIM SERVICE HOLE COVER

    Refer to PROCEDURE - Step 2

  3. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
    1. Disconnect the cable from the negative (-) auxiliary battery terminal.

      Refer to PROCEDURE - Step 3

      WARNING:
      • Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.
      • If the airbag deploys for any reason, it may cause a serious accident.
      GTY581108Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE UPPER INSTRUMENT PANEL SUB-ASSEMBLY

    Refer to REMOVAL [06/2015 - 01/2018] , or refer to REMOVAL [01/2018 - 11/2018]

  5. REMOVE INSTRUMENT PANEL PASSENGER WITHOUT DOOR AIRBAG ASSEMBLY
    WARNING:
    • When strong the instrument panel passenger airbag without door assembly, keep the airbag deployment side facing upward.
    • If the airbag deploys for any reason, it may cause a serious accident.

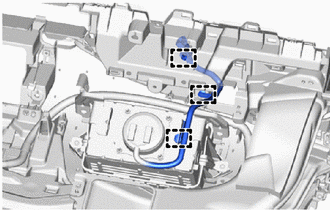

    1. Using a clip remover, disengage the 3 clamps to separate the wire harness.
      GTY567116Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

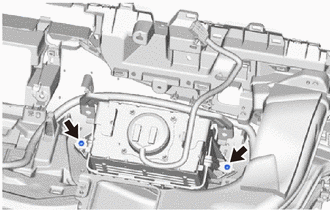

    2. Remove the 2 screws.
      GTY603859Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

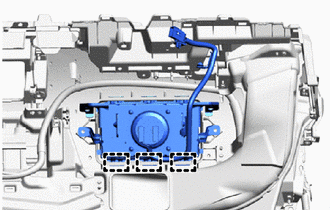

    3. While bending the side of the airbag door on the vehicle rearward side, disengage the hooks.
      GTY567112Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

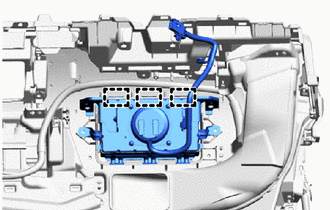

    4. Disengage the hooks from vehicle front side of the airbag door, and remove the instrument panel passenger without door airbag assembly.
      GTY567111Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE NO. 2 INSTRUMENT PANEL WIRE

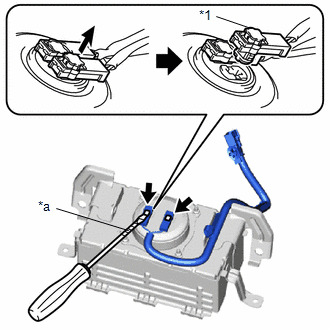

    1. Using a screwdriver with its tip wrapped in protective tape, release the locking button.
      GTY554219Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Locking Button
      *a Protective Tape
    2. Disconnect the airbag connector to remove the No. 2 instrument panel wire.
