Installation [06/2015 - ]: Procedure

  1. INSTALL INTEGRATION CONTROL AND PANEL ASSEMBLY

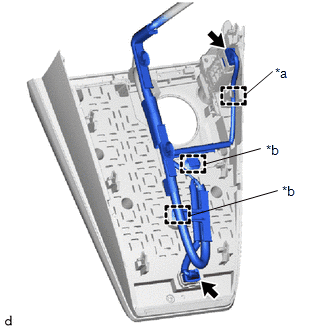

    1. Connect the 2 connectors.
      GTY558583Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a guide
      *b Clamp
    2. Disengage the guide and clamps.

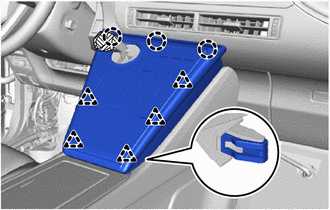

    3. Align the positions of the claws and the clips, and temporarily install the integration control panel assembly.
      GTY602400Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

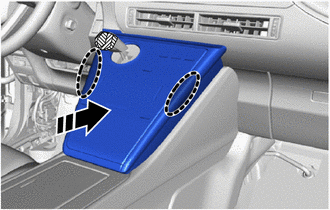

    4. Press inward in the direction shown by the arrows in the illustration, engage the claws and the clips, and install the integration and panel assembly.
      GTY546421Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hands Here
      Install in this Direction

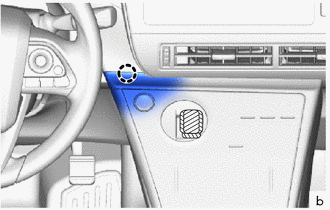

      HINT:

      Check that the claw at the position shown in the illustration is engaged, and if it is raised up or not properly engaged, press the claw portion inward to engage it.

      GTY560561Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Remove the protective tape.
