Removal [06/2015 - 11/2018]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.

    Refer to PRECAUTION [06/2015 - ]

  2. REMOVE LUGGAGE TRIM SERVICE HOLE COVER

    Refer to PROCEDURE - Step 2

  3. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

    Refer to PROCEDURE - Step 3

  4. REMOVE NO. 1 RELAY BLOCK COVER

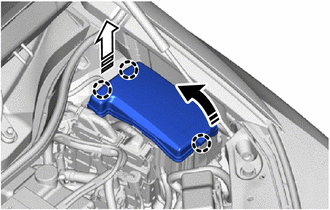

    1. Disengage the claws to remove the No. 1 relay block cover as shown in the illustration.
      GTY577267Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1)
      Remove in this Direction (2)
  5. REMOVE NO. 1 INTEGRATION RELAY

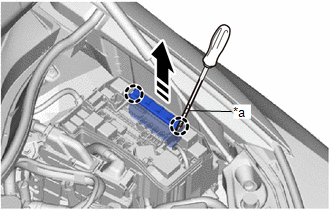

    1. Using a screwdriver with its tip wrapped with protective tape, disengage the claws.
      GTY570026Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      Remove in this Direction

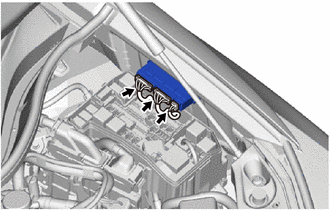

    2. Pull out the No. 1 integration relay as shown in the illustration.
    3. Disconnect the 3 connectors to remove the No. 1 integration relay.
      GTY552244Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Do not impact the No. 1 integration relay.
