Installation [11/2018 - ]: Procedure

  1. INSTALL NO. 1 INTEGRATION RELAY
    1. Connect the 3 connectors.

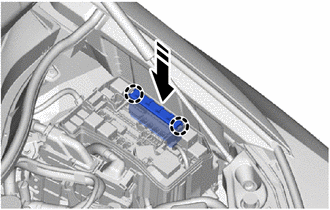

    2. Engage the claws as shown in the illustration and install the No. 1 integration relay.
      GTY586684Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  2. INSTALL NO. 1 RELAY BLOCK COVER

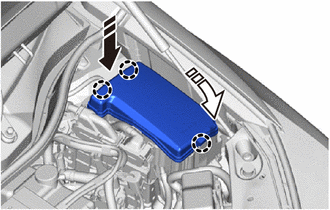

    1. Engage the claws as shown in the illustration and install the No. 1 relay block cover.
      GTY549342Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction (1)
      Install in this Direction (2)
  3. CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL

    Refer to PROCEDURE - Step 2

    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [11/2018 - ]

  4. INSTALL LUGGAGE TRIM SERVICE HOLE COVER

    Refer to PROCEDURE - Step 3
