Electronically Controlled Brake System - Diagnostic Codes (1 Of 2)
>>
Electronically Controlled Brake System
>>
DTC C1252-52: Brake Booster Pump Motor on Time Abnormally Long; DTC C1253-53: Pump Motor Relay Malfunction [06/2015 - ]
>>

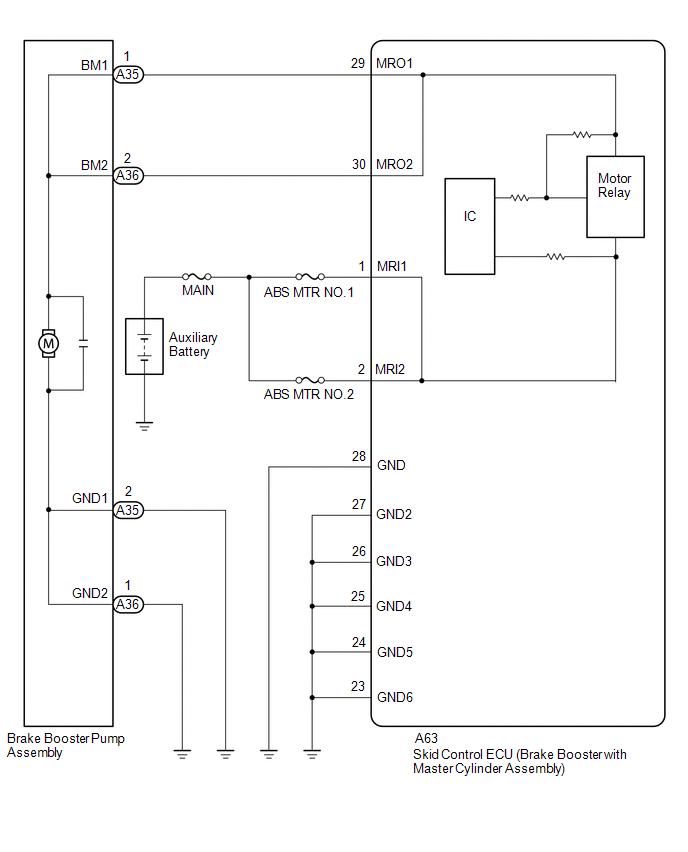

Wiring Diagram
DTC C1252-52: Brake Booster Pump Motor on Time Abnormally Long; DTC C1253-53: Pump Motor Relay Malfunction [06/2015 - ]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
