Removal [06/2015 - 11/2018]: Procedure

PRECAUTION
NOTE:
After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.

Refer to PRECAUTION [06/2015 - ]
DISABLE BRAKE CONTROL
Refer to PROCEDURE - Step 3
REMOVE REAR WHEEL
Refer to REMOVAL [06/2015 - ]
DRAIN BRAKE FLUID
NOTE:
If brake fluid leaks onto any painted surface, immediately wash it off.

DISCONNECT REAR BRAKE TUBE FLEXIBLE HOSE

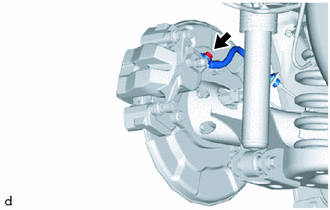

Remove the union bolt and gasket, and disconnect the rear brake tube flexible hose from the rear disc brake cylinder assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE REAR DISC BRAKE CYLINDER ASSEMBLY

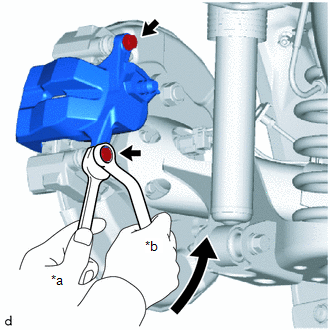

Hold the 2 rear disc brake cylinder slide pins and remove the 2 bolts and rear disc brake cylinder assembly from the rear disc brake cylinder mounting.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Hold
*b	Turn

REMOVE REAR DISC BRAKE PAD KIT

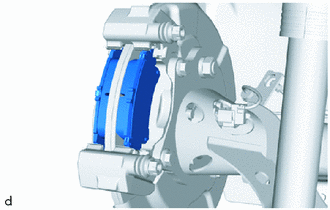

Remove the 2 rear disc brake pads from the rear disc brake cylinder mounting.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE REAR DISC BRAKE ANTI-SQUEAL SHIM KIT
1. Remove the rear No. 1 disc brake anti-squeal shim and rear No. 2 disc brake anti-squeal shim from each rear disc brake pad.
2. Using a screwdriver, remove the rear disc brake pad wear indicator plate from each rear disc brake pad.

REMOVE REAR DISC BRAKE FITTING KIT

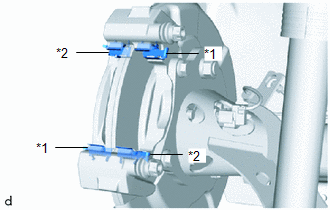

Remove the 2 rear No. 1 disc brake pad support plates and 2 rear No. 2 disc brake pad support plates from the rear disc brake cylinder mounting.

NOTE:

Rear No. 1 disc brake pad support plate and rear No. 2 disc brake pad support plate has a different shape. Be sure to put an identification mark on rear No. 1 disc brake pad support plate and rear No. 2 disc brake pad support plate so that it can be reinstalled to its original position.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	Rear No. 1 Disc Brake Pad Support Plate
*2	Rear No. 2 Disc Brake Pad Support Plate

REMOVE REAR DISC BRAKE CYLINDER SLIDE PIN

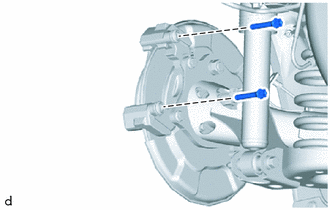

Remove the 2 rear disc brake cylinder slide pins from the rear disc brake cylinder mounting.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Using a screwdriver with its tip wrapped with protective tape, remove the rear disc brake cylinder slide bush from each rear disc brake cylinder slide pin.

NOTE:

Do not damage the rear disc brake cylinder slide pin.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Protective Tape

REMOVE REAR DISC BRAKE BUSH DUST BOOT

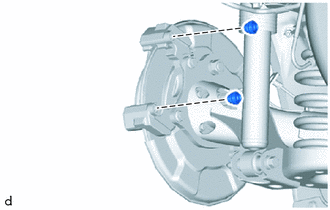

Remove the 2 rear disc brake bush dust boots from the rear disc brake cylinder mounting.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE REAR DISC BRAKE CYLINDER MOUNTING

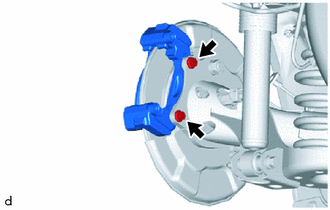

Remove the 2 bolts and rear disc brake cylinder mounting from the rear axle beam assembly.

REMOVE PARKING BRAKE SHOE ADJUSTING HOLE PLUG
1. Remove the parking brake shoe adjusting hole plug from the rear disc.

REMOVE REAR DISC

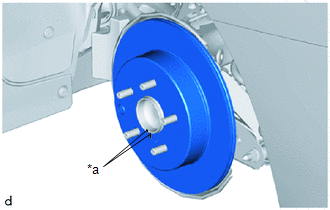

Put matchmarks on the rear disc and the rear axle hub and bearing assembly.

HINT:

When replacing the rear disc, this procedure is unnecessary.

Matchmark

Release the parking brake and remove the rear disc.

HINT:

If the rear disc cannot be removed easily, use a screwdriver to turn the parking brake shoe adjusting screw as shown in the illustration in order to contract the parking brake shoes.
