Removal [11/2018 - ]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.

    Refer to INITIALIZATION [11/2018 - ]

  2. DISABLE BRAKE CONTROL

    Refer to PROCEDURE - Step 3

  3. REMOVE FRONT WHEEL

    Refer to PROCEDURE - Step 1

  4. DRAIN BRAKE FLUID
    NOTE:

    If brake fluid leaks onto any painted surface, immediately wash it off.

  5. DISCONNECT FRONT FLEXIBLE HOSE
    1. Remove the union bolt and gasket, and disconnect the front flexible hose from the disc brake cylinder assembly.

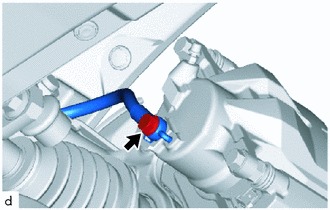

      GTY549000Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE DISC BRAKE CYLINDER ASSEMBLY
    1. Hold the front disc brake cylinder slide pin and front No. 2 brake disc cylinder slide pin and remove the 2 bolts and disc brake cylinder assembly.
      GTY592190Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Hold
      *b Turn
  7. REMOVE FRONT DISC BRAKE PAD KIT
    1. Remove the 2 front disc brake pads from the front disc brake cylinder mounting.
      GTY549002Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE FRONT ANTI-SQUEAL SHIM KIT

    Refer to PROCEDURE - Step 8

  9. REMOVE NO. 1 PAD WEAR INDICATOR PLATE

    Refer to PROCEDURE - Step 9

  10. REMOVE FRONT DISC BRAKE FITTING KIT
    1. Remove the 2 front No. 1 disc brake pad support plates and 2 front No. 2 disc brake pad support plates from the front disc brake cylinder mounting.
      NOTE:

      Each front disc brake pad support plate has a different shape. Be sure to put an identification mark on each front No. 1 disc brake pad support plates and 2 front No. 2 disc brake pad support plates so that it can be reinstalled to its original position.

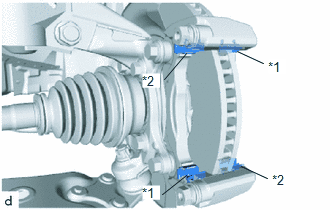

      GTY545395Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Front No. 1 Disc Brake Pad Support Plate
      *2 Front No. 2 Disc Brake Pad Support Plate
  11. REMOVE FRONT DISC BRAKE CYLINDER SLIDE PIN
    1. Remove the front disc brake cylinder slide pin from the front disc brake cylinder mounting.

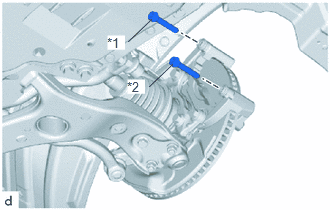

      GTY576207Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Front Disc Brake Cylinder Slide Pin
      *2 Front No. 2 Disc Brake Cylinder Slide Pin
  12. REMOVE FRONT NO. 2 DISC BRAKE CYLINDER SLIDE PIN

    HINT:

    Use the same procedure for the front disc brake cylinder slide pin side.

  13. REMOVE FRONT DISC BRAKE CYLINDER SLIDE BUSH
    1. Using a screwdriver with its tip wrapped with protective tape, remove the front disc brake cylinder slide bush from the front No. 2 disc brake cylinder slide pin.
      NOTE:

      Do not damage the front No. 2 disc brake cylinder slide pin.

      GTY584871Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
  14. REMOVE FRONT DISC BRAKE BUSH DUST BOOT
    1. Remove the 2 front disc brake bush dust boots from the front disc brake cylinder mounting.
      GTY557532Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE FRONT DISC BRAKE CYLINDER MOUNTING
    1. Remove the 2 bolts and front disc brake cylinder mounting from the steering knuckle.
      GTY557531Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE FRONT DISC
    1. Put matchmarks on the front disc and the front axle hub sub-assembly.
      GTY609294Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Matchmark
    2. Remove the front disc.
