Installation [06/2015 - ]: Procedure

INSTALL POWER WINDOW REGULATOR SWITCH ASSEMBLY

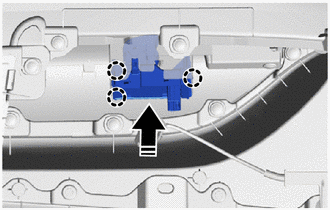

Engage the claws to install the power window regulator switch assembly as shown in the illustration.

GTY590452

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install in this Direction

Connect the connector.

INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY RH
HINT:

Use the same procedure for the LH side.

Refer to PROCEDURE - Step 44 [06/2015 - 11/2018] , or refer to PROCEDURE - Step 44 [11/2018 - ]
INSTALL COURTESY LIGHT ASSEMBLY
HINT:

Use the same procedure for the LH side.

Refer to PROCEDURE - Step 2
INSTALL NO. 1 FRONT DOOR STIFFENER CUSHION
HINT:

Use the same procedure for the LH side.

Refer to PROCEDURE - Step 46 [06/2015 - 11/2018] , or refer to PROCEDURE - Step 46 [11/2018 - ]
INSTALL FRONT DOOR ARMREST COVER RH
HINT:

Use the same procedure for the LH side.

Refer to PROCEDURE - Step 47 [06/2015 - 11/2018] , or refer to PROCEDURE - Step 47 [11/2018 - ]
INSTALL FRONT DOOR INSIDE HANDLE BEZEL PLUG RH
HINT:

Use the same procedure for the LH side.

Refer to PROCEDURE - Step 48 [06/2015 - 11/2018] , or refer to PROCEDURE - Step 48 [11/2018 - ]
