Installation [06/2015 - ]: Procedure

  1. INSTALL SEAT MEMORY SWITCH

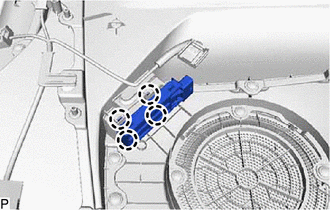

    1. Engage the claws to install the seat memory switch.
      GTY561006Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the connector.
  2. INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH

    Refer to INSTALLATION [06/2015 - ]
