Removal [06/2015 - 11/2018]: Procedure

REMOVE NO. 1 REAR BUMPER PLATE

Using a screwdriver with its tip wrapped in protective tape, disengage the claws.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Protective Tape

Disengage the hook to remove the No. 1 rear bumper plate.
HINT:

Use the same procedure for the RH side.

REMOVE REAR BUMPER SIDE SEAL LH

Remove the 6 clips.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Disengage the claw to remove the rear bumper side seal LH.

REMOVE REAR BUMPER SIDE SEAL RH
HINT:

Use the same procedure as for the LH side.

REMOVE REAR BUMPER ASSEMBLY

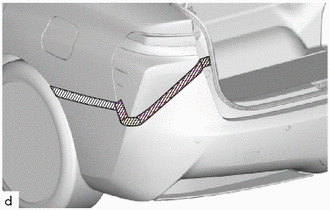

Apply protective tape around the rear bumper assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Protective Tape

HINT:

Use the same procedure for the RH side.

Remove the 2 screws.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

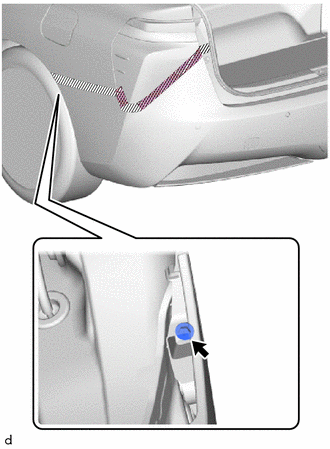

Remove the screw.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Use the same procedure for the RH side.

Remove the 4 screws and 2 clips.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Pull the edge of the rear bumper assembly in the direction shown by the arrow in the illustration to disengage the claws.

HINT:

Use the same procedure for the RH side.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

	Place Hands Here
	Remove in this Direction

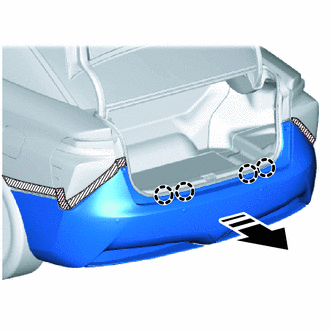

Pull the rear bumper assembly in the direction shown by the arrow in the illustration to disengage the claws.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

	Place Hands Here
	Remove in this Direction

NOTE:

Because the vehicle wire harness is connected to the rear bumper assembly, hold the rear bumper assembly in a position where the connectors can be disconnected.

HINT:

Use the same procedure for the RH side.

Disengage the claws as shown in the illustration.

Remove in this Direction

Disconnect the connector.

Pull the rear bumper assembly in the direction shown by the arrow in the illustration, and remove the rear bumper assembly.

Remove in this Direction
