Removal [06/2015 - ]: Procedure

  1. REMOVE UPPER QUARTER WINDOW MOULDING
    1. Apply protective tape around the upper quarter window moulding.

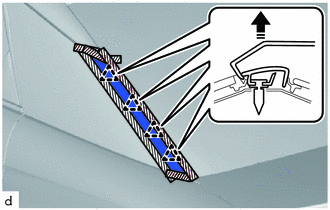

      GTY582737Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape
      Remove in this Direction
    2. Using a moulding remover C, disengage the clips to remove the upper quarter window moulding as shown in the illustration.
