Removal [06/2015 - ]: Procedure

  1. REMOVE REAR DOOR SCUFF PLATE

    Refer to PROCEDURE - Step 12 [06/2015 - 11/2018] , or refer to PROCEDURE - Step 12 [11/2018 - ]

  2. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP

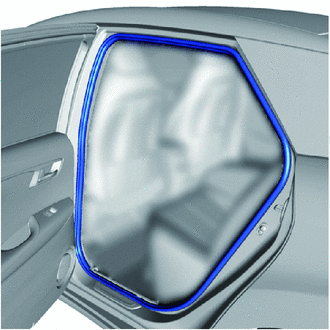

    1. Remove the rear door opening trim weatherstrip.
      GTY594890Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
