Removal [06/2015 - ]: Procedure

  1. REMOVE FUEL LID WITH MOTOR LOCK ASSEMBLY

    See step  8

  2. REMOVE HYDROGEN INLET RECEPTACLE CAP
    1. Using a clip remover, disengage the clamp.
      GTY579562Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    2. Remove the hydrogen inlet receptacle cap as shown in the illustration.
  3. REMOVE FUEL TANK CAP COVER
    1. Wrap the protective tape to the hydrogen inlet receptacle assembly.
      GTY596709Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape

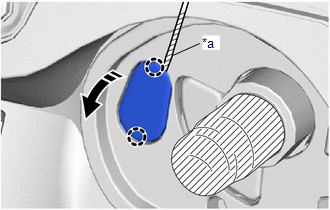

    2. Using a thin-bladed screwdriver with its tip wrapped in protective tape, disengage the claws to remove the fuel tank cap cover.
      GTY566814Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      Remove in this Direction
  4. REMOVE FUEL TANK FILLER PIPE SHIELD
    1. Remove the screw.
      GTY541141Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a moulding remover B, disengage the claws to remove the fuel tank filler pipe shield as shown in the illustration.
      GTY607825Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  5. REMOVE FUEL FILLER OPENING LID SUB-ASSEMBLY

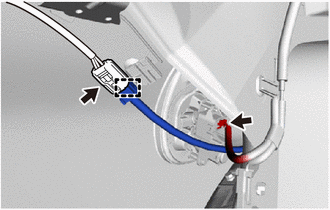

    1. Disconnect the 2 connectors.
      GTY541136Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the clamp to separate the wire harness.
    3. Apply protective tape around the fuel filler opening lid sub-assembly as shown in the illustration.
      GTY547615Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape
    4. Remove the 4 screws.
      GTY541131Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Remove the fuel filler opening lid sub-assembly as shown in the illustration.
      GTY601853Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
