Removal [06/2015 - 11/2018]: Procedure

  1. REMOVE UPPER INSTRUMENT PANEL SUB-ASSEMBLY

    Refer to REMOVAL [06/2015 - 01/2018] , or refer to REMOVAL [01/2018 - 11/2018]

  2. REMOVE NO. 3 HEATER TO REGISTER DUCT

    Refer to PROCEDURE - Step 7

  3. REMOVE NO. 1 SIDE DEFROSTER NOZZLE DUCT

    Refer to PROCEDURE - Step 8

  4. REMOVE NAVIGATION ANTENNA ASSEMBLY
    1. Disengage the claws.
      GTY556679Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector.

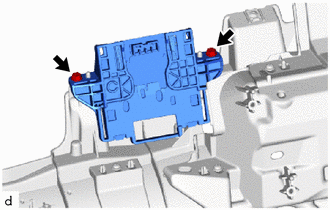

    3. Remove the 2 screws and navigation antenna assembly with bracket.
      GTY572556Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

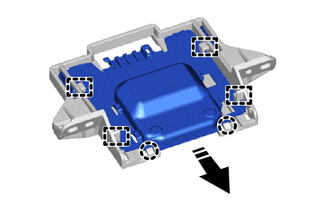

    4. Disengage the claws.
      GTY572402Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    5. Disengage the guides to remove the navigation antenna assembly as shown in the illustration.
