Removal [06/2015 - 11/2018]: Procedure

  1. REMOVE FRONT BUMPER ASSEMBLY

    Refer to REMOVAL [06/2015 - 11/2018]

  2. REMOVE NO. 1 ULTRASONIC SENSOR

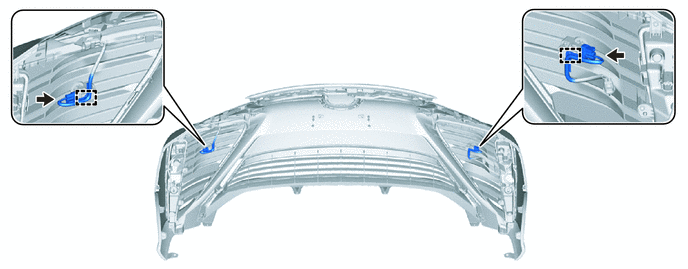

    1. Disengage the clamps and disconnect the 2 connectors.
      GTY605008Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

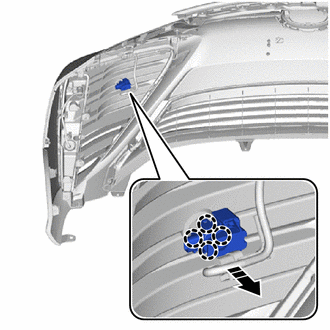

    2. Disengage the claws to remove the No. 1 ultrasonic sensor as shown in the illustration.

      HINT:

      Use the same procedure for both sides.

      GTY588197Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  3. REMOVE NO. 1 ULTRASONIC SENSOR RETAINER

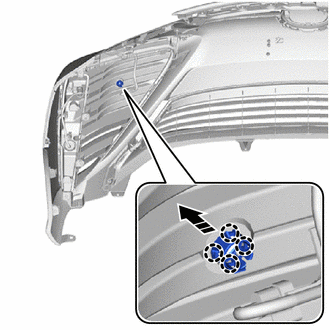

    1. Disengage the claws to remove the No. 1 ultrasonic sensor retainer as shown in the illustration.

      HINT:

      Use the same procedure for both sides.

      GTY594541Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  4. REMOVE ULTRASONIC SENSOR CLIP

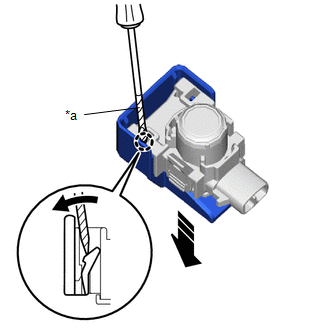

    1. Using a screwdriver with its tip wrapped with protective tape, disengage the claw to remove the ultrasonic sensor clip.

      HINT:

      Use the same procedure for both sides.

      GTY544795Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      Disengage in this Direction
      Remove in this Direction
