Removal [06/2015 - ]: Procedure

  1. REMOVE LUGGAGE COMPARTMENT DOOR GARNISH SUB-ASSEMBLY OUTSIDE

    Refer to REMOVAL [06/2015 - ]

  2. REMOVE REAR TELEVISION CAMERA ASSEMBLY

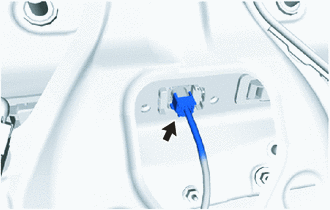

    1. Disconnect the connector.
      GTY572205Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

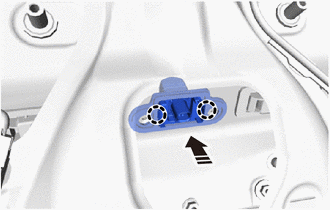

    2. Disengage the claws to remove the rear television camera assembly as shown in the illustration.
      GTY539309Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
