Removal [06/2015 - 11/2018]: Procedure

  1. REMOVE ROOF HEADLINING ASSEMBLY

    Refer to REMOVAL [06/2015 - 11/2018]

  2. REMOVE NO. 1 AMPLIFIER ANTENNA ASSEMBLY

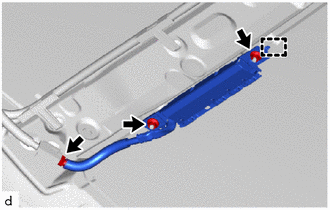

    1. Disconnect the connector.
      GTY572579Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 nuts.
    3. Disengage the hook to remove the No. 1 amplifier antenna assembly.
      NOTE:

      Do not touch the contact points.
