Removal [06/2015 - ]: Procedure

  1. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 17 [06/2015 - 01/2018] , or refer to PROCEDURE - Step 17 [01/2018 - 11/2018] , or refer to PROCEDURE - Step 17 [11/2018 - ]

  2. REMOVE STOP LIGHT SWITCH ASSEMBLY
    1. Disconnect the connector.

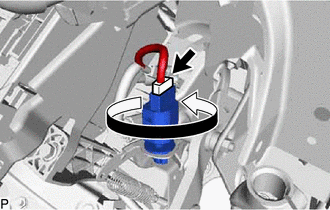

      GTY598254Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Turn
    2. Turn the stop light switch assembly counterclockwise and remove it.
  3. REMOVE STOP LIGHT SWITCH MOUNTING ADJUSTER
    1. Using a screwdriver with its tip wrapped in protective tape, disengage the claws to remove the stop light switch mounting adjuster.

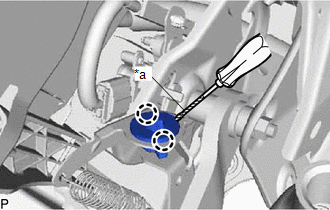

      GTY551739Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      NOTE:

      The stop light switch mounting adjuster must not be reused.
