Removal [06/2015 - ]: Procedure

  1. REMOVE LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH SUB-ASSEMBLY

    Refer to REMOVAL [06/2015 - ]

  2. REMOVE LICENSE PLATE LIGHT ASSEMBLY

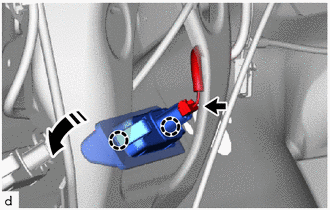

    1. Disconnect the connector.
      GTY546349Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    2. Disengage the claws to remove the license plate light assembly as shown in the illustration.

      HINT:

      Use the same procedure as for the RH side.
