Removal [06/2015 - ]: Procedure

  1. REMOVE FRONT BUMPER ASSEMBLY

    Refer to REMOVAL [06/2015 - 11/2018] , or refer to REMOVAL [11/2018 - ]

  2. REMOVE CLEARANCE LIGHT ASSEMBLY

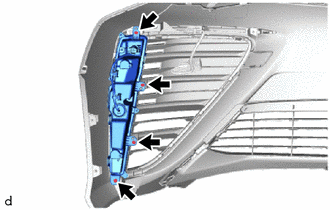

    1. Remove the 4 screws and clearance light assembly.
      GTY607406Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
