Removal [11/2018 - ]: Procedure

REMOVE FORWARD RECOGNITION CAMERA
Refer to REMOVAL [11/2018 - ]

REMOVE FORWARD RECOGNITION WITH HEATER HOOD SUB-ASSEMBLY

NOTE:

Do not touch the inner surface of the forward recognition with heater hood sub-assembly.
Do not apply force to the heating element of the forward recognition with heater hood sub-assembly or an open circuit may result.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Inner Surface of Forward Recognition with Heater Hood Sub-assembly

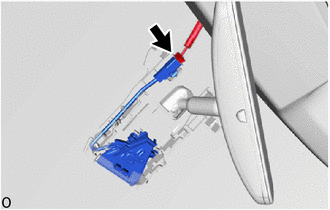

Disconnect the connector.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

Do not pull the harness forcibly when disconnecting the connector.

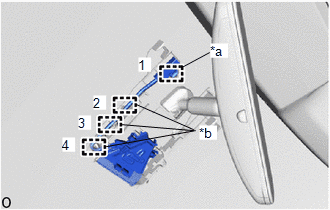

Disengage the clamp and 3 ribs.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Clamp
*b	Rib

HINT:

Disengage the clamp and ribs in the order shown in the illustration.

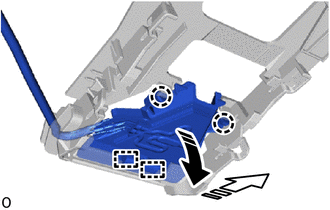

Pull the forward recognition with heater hood sub-assembly in the direction indicated by the arrow (1) shown in the illustration to disengage the 2 claws.

	Remove in this Direction (1)
	Remove in this Direction (2)

Pull the forward recognition with heater hood sub-assembly in the direction indicated by the arrow (2) shown in the illustration to disengage the 2 guides and remove the forward recognition with heater hood sub-assembly.
