Components [06/2015 - ]

Fig 1: Radiator Replacement Components With Torque Specifications (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	LUGGAGE TRIM SERVICE HOLE COVER	*2	NEGATIVE AUXILIARY BATTERY TERMINAL
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : Nm (kgfcm, ft.*lbf)	-	-

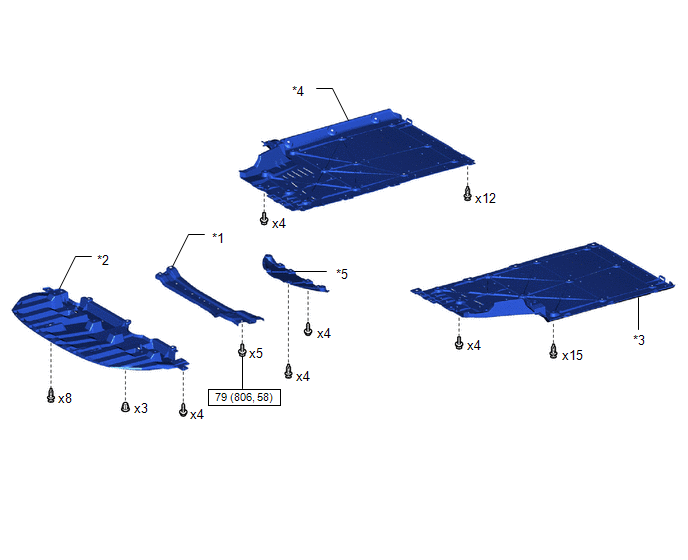

Fig 2: Radiator Replacement Components With Torque Specifications (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	FRONT SUSPENSION MEMBER TO CROSSMEMBER BRACE SUB-ASSEMBLY	*2	FRONT BUMPER LOWER ABSORBER
*3	FRONT FLOOR COVER LH	*4	FRONT FLOOR COVER RH
*5	NO. 2 MOTOR UNDER COVER	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	-	-

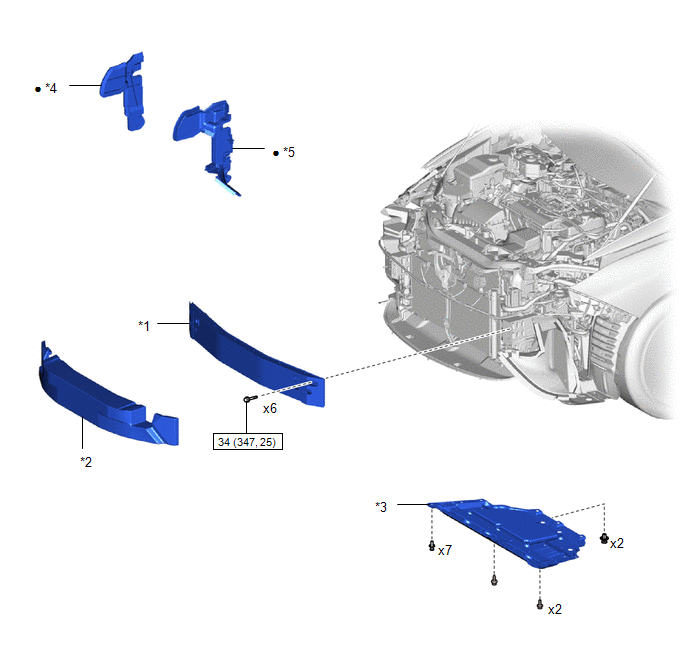

Fig 3: Radiator Replacement Components With Torque Specifications (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	FRONT BUMPER REINFORCEMENT SUB-ASSEMBLY	*2	FRONT BUMPER ENERGY ABSORBER
*3	NO. 1 MOTER UNDER COVER	*4	NO. 1 RADIATOR AIR GUIDE RH
*5	NO. 1 RADIATOR AIR GUIDE LH	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	•	Non-reusable part

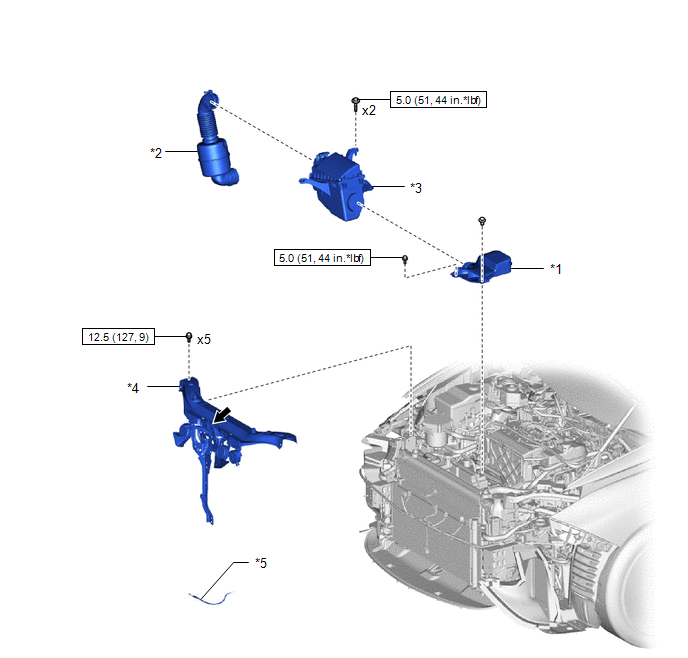

Fig 4: Radiator Replacement Components With Torque Specifications (4 Of 5)

Callout	Description	Callout	Description
*1	AIR CLEANER INLET	*2	AIR CLEANER HOSE ASSEMBLY
*3	AIR CLEANER ASSY WITH ELEMENT	*4	UPPER RADIATOR SUPPORT SUB-ASSEMBLY
*5	HOOD LOCK CONTROL CABLE ASSEMBLY	-	-
	Nm (kgfcm, ft.*lbf): Specified torque		MP grease

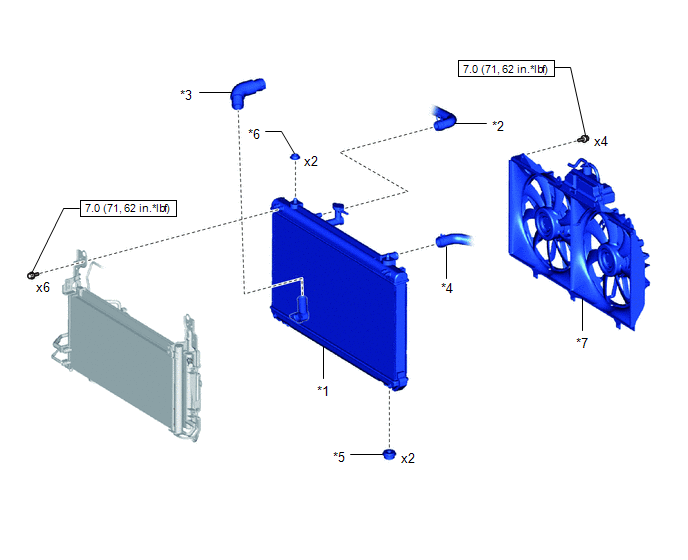

Fig 5: Radiator Replacement Components With Torque Specifications (5 Of 5)

Callout	Description	Callout	Description
*1	FC RADIATOR ASSEMBLY	*2	FC SUB-RADIATOR INLET HOSE
*3	NO. 1 FC RADIATOR OUTLET HOSE	*4	FC RADIATOR INLET HOSE
*5	LOWER RADIATOR SUPPORT	*6	RADIATOR SUPPORT CUSHION
*7	FAN ASSY WITH MOTOR	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	-	-
