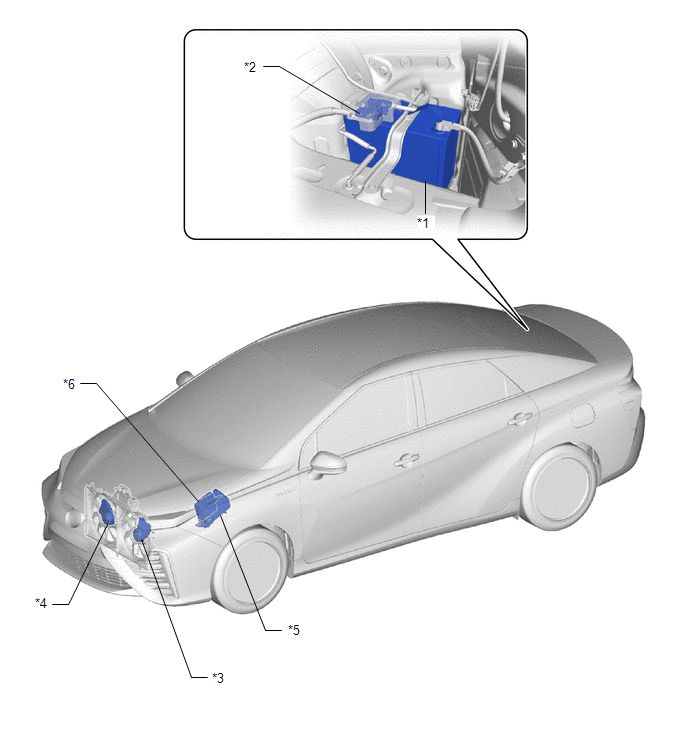

Parts Location [06/2015 - ]: Illustration

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	AUXILIARY BATTERY	*2	FUSIBLE LINK BLOCK ASSEMBLY - MAIN FUSE
*3	COOLING FAN WITH CONTROLLER MOTOR (for Fan Side)	*4	COOLING FAN WITH CONTROLLER MOTOR (for Fan No. 2 Side)
*5	MOTOR ROOM RELAY BLOCK - DC/DC FUSE - RDI FAN NO. 1 FUSE - RDI FAN NO. 2 FUSE - RADIATOR FAN RELAY (RDI FAN NO. 1) - NO. 2 RADIATOR FAN RELAY (RDI FAN NO. 2)	*6	FC CONTROL ECU
