Removal [06/2015 - 11/2018]: Procedure

  1. REMOVE FC RADIATOR ASSEMBLY

    Refer to REMOVAL [06/2015 - 11/2018]

  2. REMOVE COOLING FAN WITH CONTROLLER MOTOR
    1. For Fan Side:

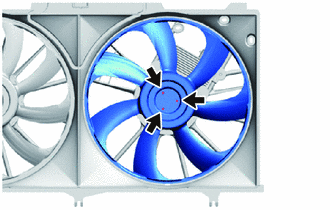

      1. Remove the 3 screws and fan from the fan shroud.
        GTY565145Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

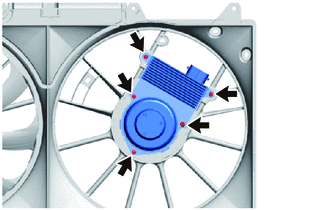

      2. Remove the 5 screws and cooling fan with controller motor from the fan shroud.
        GTY565151Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        NOTE:

        If the cooling fan with controller motor has been struck or dropped, replace it.

    2. For No. 2 Fan Side:

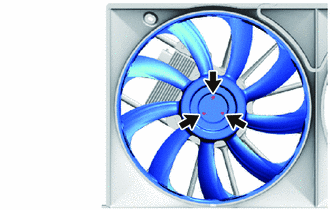

      1. Remove the 3 screws and No. 2 fan from the fan shroud.
        GTY603424Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

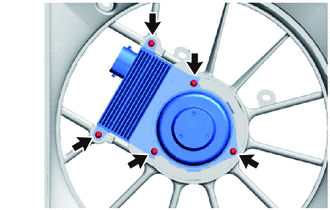

      2. Remove the 5 screws and cooling fan with controller motor from the fan shroud.
        GTY565154Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        NOTE:

        If the cooling fan with controller motor has been struck or dropped, replace it.
