Removal [01/2018 - ]: Procedure

  1. REMOVE CONSOLE REAR END PANEL SUB-ASSEMBLY
    1. Disengage the clips and claws to remove the console rear end panel sub-assembly as shown in the illustration.
      GTY568377Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hands Here
      Remove in this Direction

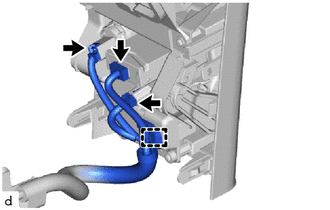

    2. Disconnect the 3 connectors.
      GTY844681Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the clamp to remove the console rear end panel sub-assembly.
  2. REMOVE NO. 1 POWER OUTLET SOCKET ASSEMBLY

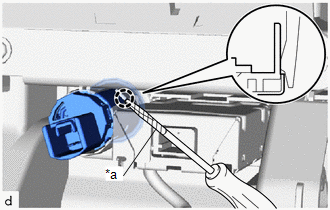

    1. Using a screwdriver with its tip wrapped in protective tape, disengage the claw to remove the No. 1 power outlet socket assembly.
      GTY882897Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
  3. REMOVE NO. 1 POWER OUTLET SOCKET COVER

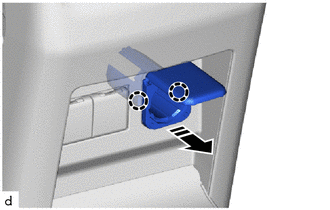

    1. Disengage the claws to remove the No. 1 power outlet socket cover as shown in the illustration.
      GTY938341Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  4. REMOVE USB CHARGER SOCKET

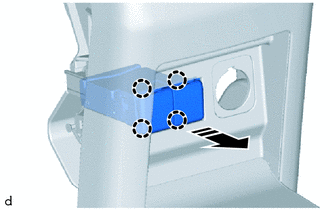

    1. Disengage the claws to remove the USB charger socket as shown in the illustration.
      GTY874785Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
