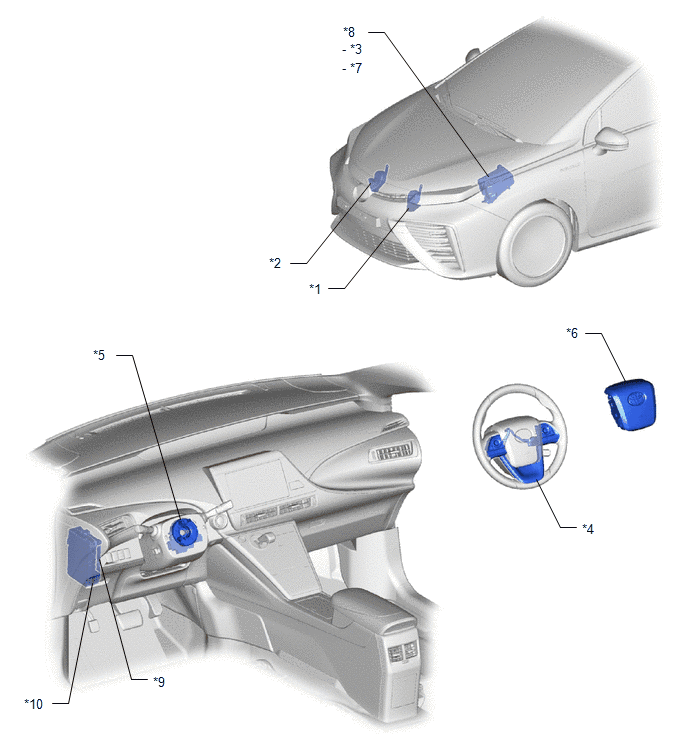

Parts Location [06/2015 - ]: Illustration

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	HIGH PITCHED HORN ASSEMBLY	*2	LOW PITCHED HORN ASSEMBLY
*3	NO. 1 INTEGRATION RELAY (HORN RELAY)	*4	STEERING PAD SWITCH ASSEMBLY
*5	SPIRAL CABLE SUB-ASSEMBLY	*6	HORN BUTTON ASSEMBLY
*7	HORN FUSE	*8	MOTOR COMPARTMENT RELAY BLOCK
*9	MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)	*10	INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY
