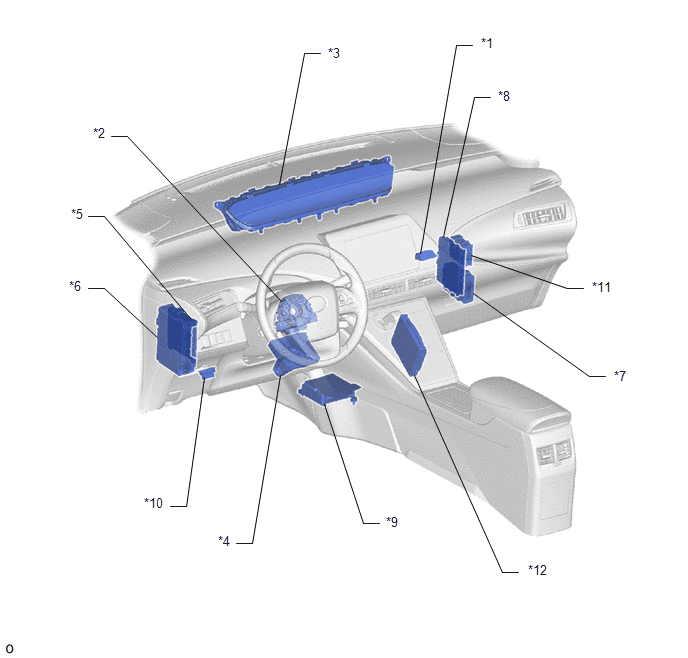

Parts Location [11/2018 - ]: Illustration
| *1 | HAZARD WARNING SIGNAL SWITCH ASSEMBLY | *2 | SPIRAL CABLE SUB-ASSEMBLY |
| *3 | COMBINATION METER ASSEMBLY | *4 | AIR CONDITIONING AMPLIFIER ASSEMBLY |
| *5 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *6 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - HAZ FUSE - METER-IG2 FUSE |
| *7 | TRANSMISSION CONTROL ECU ASSEMBLY | *8 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) |
| *9 | AIRBAG ECU ASSEMBLY | *10 | DLC3 |
| *11 | VEHICLE APPROACHING SPEAKER CONTROLLER | *12 | DCM (TELEMATICS TRANSCEIVER) |
| *1 | HEADLIGHT DIMMER SWITCH ASSEMBLY | *2 | STEERING PAD SWITCH ASSEMBLY |
| *3 | WINDSHIELD WIPER RELAY ASSEMBLY | *4 | RADIO AND DISPLAY RECEIVER ASSEMBLY |
| *5 | POWER STEERING ECU ASSEMBLY | *6 | LIGHT CONTROL RHEOSTAT |
| *7 | CLEARANCE WARNING ECU ASSEMBLY | *8 | NAVIGATION ECU |
| *1 | BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY (SKID CONTROL ECU) | *2 | FORWARD RECOGNITION CAMERA |
| *3 | EV CONTROL ECU | *4 | FC CONTROL ECU |
| *5 | LEVEL WARNING SWITCH ASSEMBLY | - | - |
| *1 | CLEARANCE LIGHT ASSEMBLY LH | *2 | CLEARANCE LIGHT ASSEMBLY RH |
| *3 | REAR COMBINATION LIGHT ASSEMBLY LH | *4 | REAR COMBINATION LIGHT ASSEMBLY RH |
| *5 | VEHICLE APPROACHING SPEAKER ASSEMBLY | *6 | SIDE TURN SIGNAL LIGHT ASSEMBLY LH |
| *7 | SIDE TURN SIGNAL LIGHT ASSEMBLY RH | *8 | BLIND SPOT MONITOR SENSOR RH |
| *9 | BLIND SPOT MONITOR SENSOR LH | *10 | OUTER MIRROR CONTROL ECU ASSEMBLY RH |
| *11 | OUTER MIRROR CONTROL ECU ASSEMBLY LH | *12 | MOTOR COMPARTMENT RELAY BLOCK - ECU-B NO. 1 FUSE |
