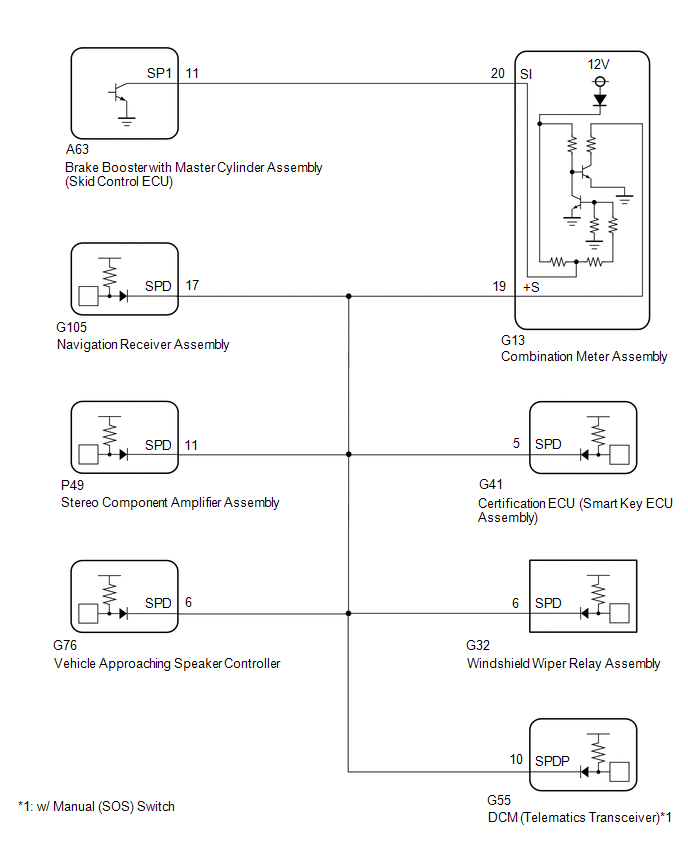

Speed Signal Circuit [06/2015 - 01/2018]: Wiring Diagram

GTY545619

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
