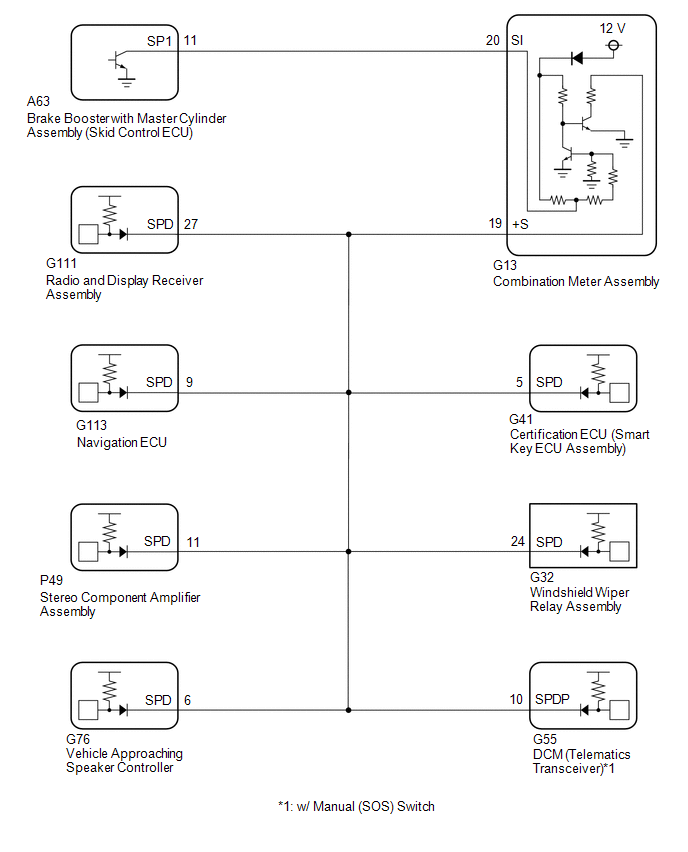

Speed Signal Circuit [01/2018 - ]: Wiring Diagram

GTY851859

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
