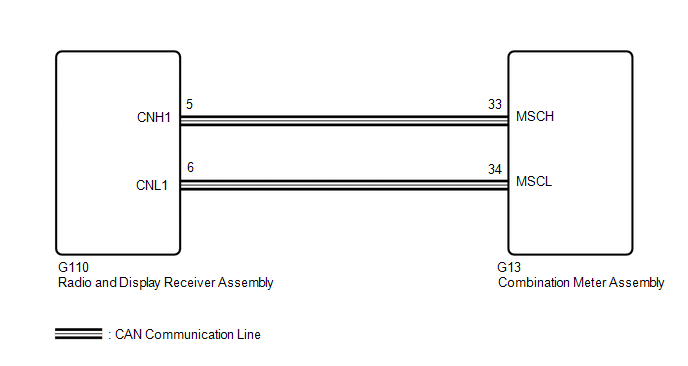

DTC B150A: Lost Communication with HMI-LAN [01/2018 - ]: Wiring Diagram

GTY917046

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
