Parts Location [06/2015 - ]: Illustration

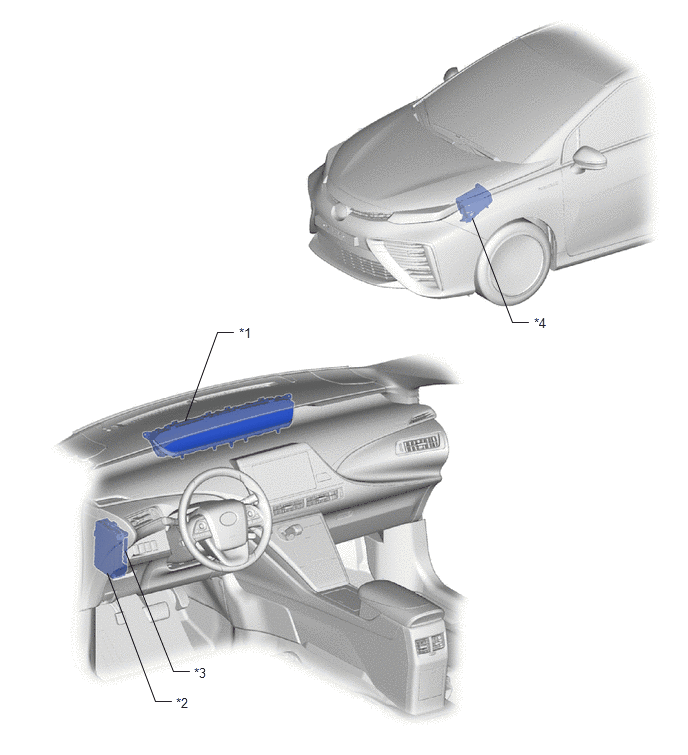

GTY598459Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 COMBINATION METER ASSEMBLY *2 INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY
- METER-IG2 FUSE
*3 MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) *4 MOTOR COMPARTMENT RELAY BLOCK
- ECU-B NO. 1 FUSE
