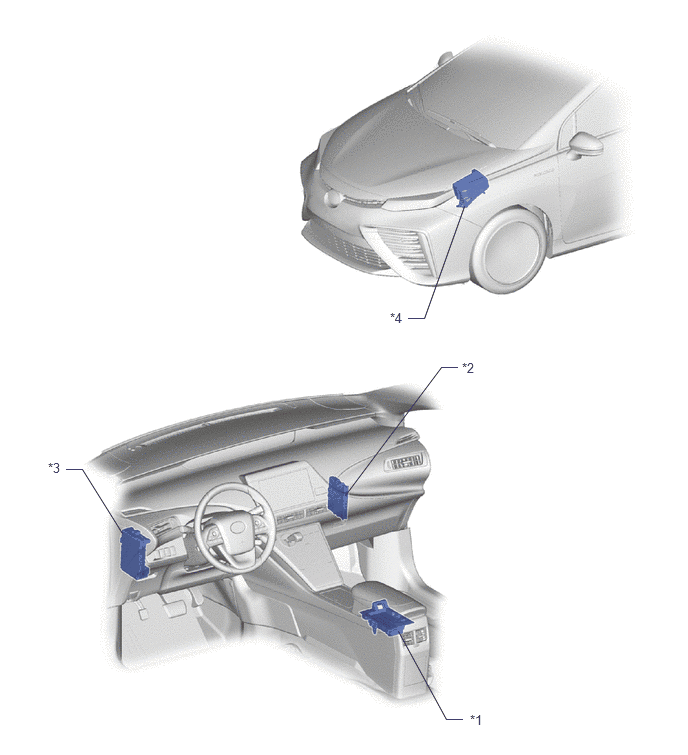

Parts Location [06/2015 - ]: Illustration

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	MOBILE WIRELESS CHARGER CRADLE ASSEMBLY	*2	CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)
*3	INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-ACC FUSE - ACC RELAY - PANEL FUSE	*4	MOTOR COMPARTMENT RELAY BLOCK - ECU-B NO. 1 FUSE
