Operation Check [06/2015 - ]

  1. CHECK WIRELESS CHARGING SYSTEM OPERATION
    1. Turn the power switch on (ACC) or on (IG).

      HINT:

      When the wireless charging system is on and the power switch is turned off, the wireless charging system turns on the next time the power switch is turned on (ACC) or on (IG).

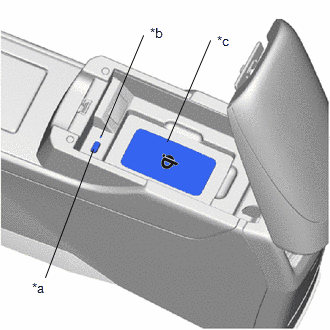

      GTY591075Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Wireless Charger Switch
      *b Indicator (Green/Amber)
      *c Charging Area
    2. When the wireless charging system is turned on, check that the indicator illuminates green.
    3. When the Qi-compatible device is placed on the charging area, check that the indicator illuminates amber and charging starts.

      Refer to SYSTEM DESCRIPTION [06/2015 - ]

    4. When the Qi-compatible device charging completes, check that the indicator illuminates green.

      HINT:

      Even when using a Qi-compatible device, case or accessory, the indicator may fail to illuminate green when the charging is complete. In this case, check the charge condition on the device.

    5. When the wireless charging system is turned off, check that the indicator turns off.
