Parts Location [06/2015 - ]: Illustration

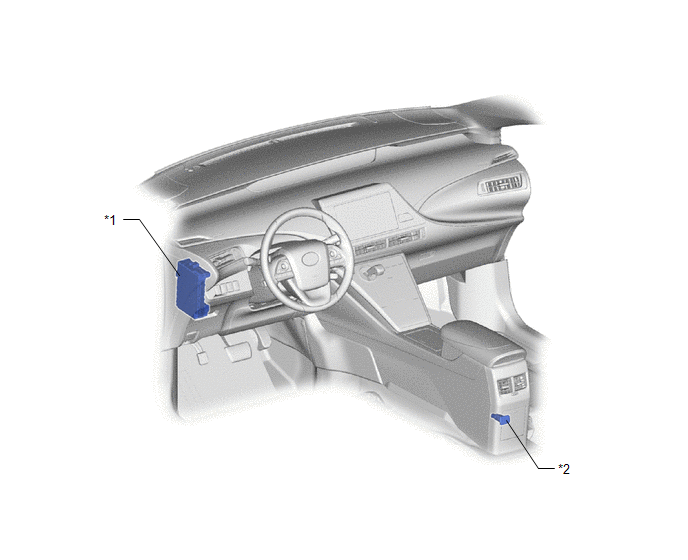

GTY594121Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY
- P/OUTLET FUSE
- P/OUTLET RELAY		 *2 NO. 1 POWER OUTLET SOCKET ASSEMBLY
