Installation [06/2015 - ]: Procedure

See step  5

1. Install the parking brake control pedal assembly to the body with the bolt and 2 nuts.

   Torque: 14.5 N*m (148 kgf*cm, 11 ft.*lbf)

2. Connect the parking brake switch connector.
3. Engage the 3 clamps to install the wire harness to the parking brake control pedal assembly.

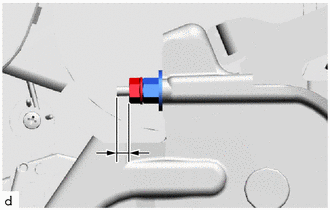

4. Install the lock nut, and temporarily install the No. 1 parking brake cable assembly so that its protruding amount is as specified.

   Standard

   2.0 to 5.0 mm (0.0787 to 0.197 in.)

   HINT:

   After adjusting parking brake pedal travel, tighten the lock nut.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the No. 1 parking brake cable assembly to the body with the nut.

   Torque: 6.0 N*m (61 kgf*cm, 53 in.*lbf)

2. Install the bolt.

   Torque: 14.5 N*m (148 kgf*cm, 11 ft.*lbf)

3. Install the No. 1 parking brake cable assembly to the parking brake equalizer sub-assembly with the lock nut and No. 2 wire adjusting nut.
4. Using a wrench, hold the No. 2 wire adjusting nut and tighten the lock nut.

   Torque: 14.5 N*m (148 kgf*cm, 11 ft.*lbf)

5. Install the No. 1 parking brake cable assembly to the cable support bracket with the 2 nuts.

   Torque: 14.5 N*m (148 kgf*cm, 11 ft.*lbf)

Refer to INSTALLATION [06/2015 - 11/2018] , or refer to INSTALLATION [11/2018 - ]

Refer to ADJUSTMENT [06/2015 - ]

Refer to INSTALLATION [06/2015 - ]

Refer to PROCEDURE - Step 3
