Components [06/2015 - ]

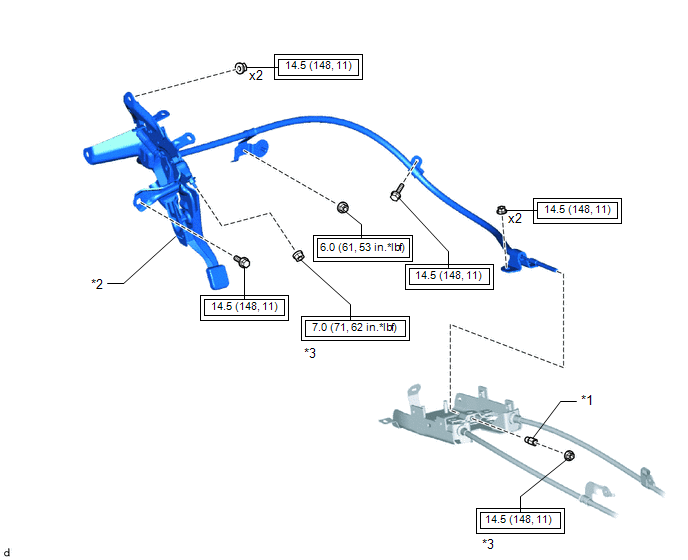

Fig 1: Parking Brake Pedal Replacement Components With Torque Specifications (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	NO. 2 WIRE ADJUSTING NUT	*2	PARKING BRAKE CONTROL PEDAL ASSEMBLY
*3	LOCK NUT	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : Nm (kgfcm, ft.*lbf)	-	-

Fig 2: Parking Brake Pedal Replacement Components (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	NO. 1 PARKING BRAKE CABLE ASSEMBLY	*2	NO. 1 WIRE ADJUSTING NUT
•	Non-reusable part	-	-

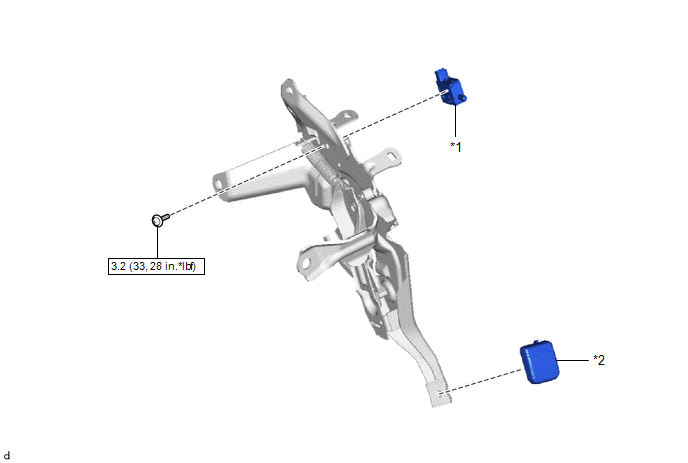

Fig 3: Parking Brake Pedal Replacement Components With Torque Specifications (3 Of 3)

Callout	Description	Callout	Description
*1	PARKING BRAKE SWITCH ASSEMBLY	*2	PARKING PEDAL PAD
	Nm (kgfcm, ft.*lbf): Specified torque	-	-
