Removal [06/2015 - 11/2018]: Procedure

Refer to REMOVAL [06/2015 - 11/2018]

Refer to PROCEDURE - Step 7

Refer to DISASSEMBLY [06/2015 - 11/2018]

HINT:

Use the same procedure as for the LH side.

Refer to REMOVAL [06/2015 - 11/2018]

1. Remove the No. 1 wire adjusting nut from the No. 1 parking brake cable assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

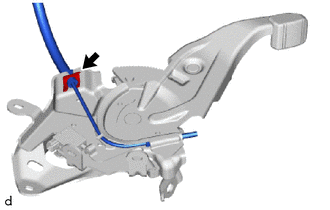

2. Pull up the parking brake control pedal assembly claw.
   NOTE:

   Do not damage the No. 1 parking brake cable assembly.

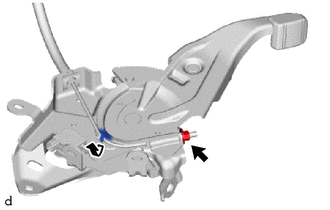

3. Remove the clip from the parking brake control pedal assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

4. Remove the No. 1 parking brake cable assembly from the parking brake control pedal assembly.

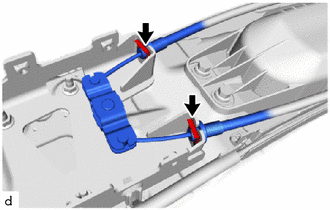

1. Remove the 2 clips to separate the No. 2 parking brake cable assembly and No. 3 parking brake cable assembly from the cable support bracket.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Remove the No. 3 parking brake cable assembly from the parking brake equalizer sub-assembly as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   Perform the same procedure as for the No. 2 parking brake cable assembly.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

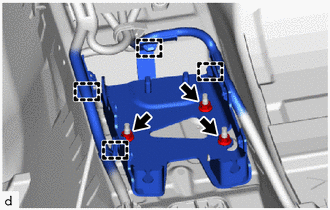

   Disengage the 4 clamps to separate the wire harness from the cable support bracket.

2. Remove the 3 nuts and cable support bracket from the body.

1. Remove the bolt to separate the No. 3 parking brake cable assembly from the body.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

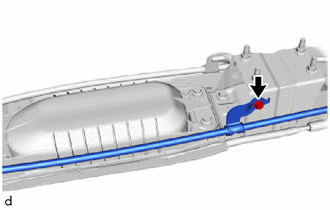

2. Remove the No. 2 parking brake cable clamp from the No. 3 parking brake cable assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

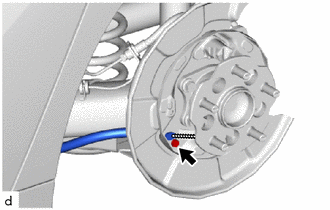

3. Remove the bolt to separate the No. 3 parking brake cable assembly from the parking brake plate sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

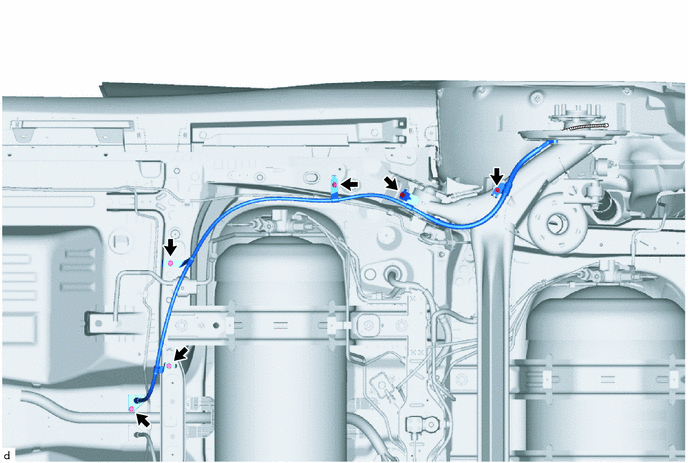

4. Remove the 6 bolts and No. 3 parking brake cable assembly from the body.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Perform the same procedure as for the No. 3 parking brake cable assembly.
