Components [06/2015 - ]

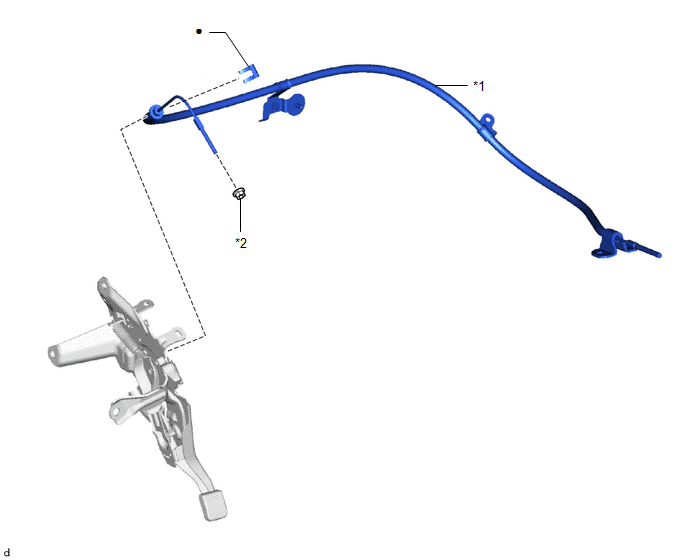

| *1 | NO. 1 PARKING BRAKE CABLE ASSEMBLY | *2 | NO. 1 WIRE ADJUSTING NUT |
| • | Non-reusable part | - | - |

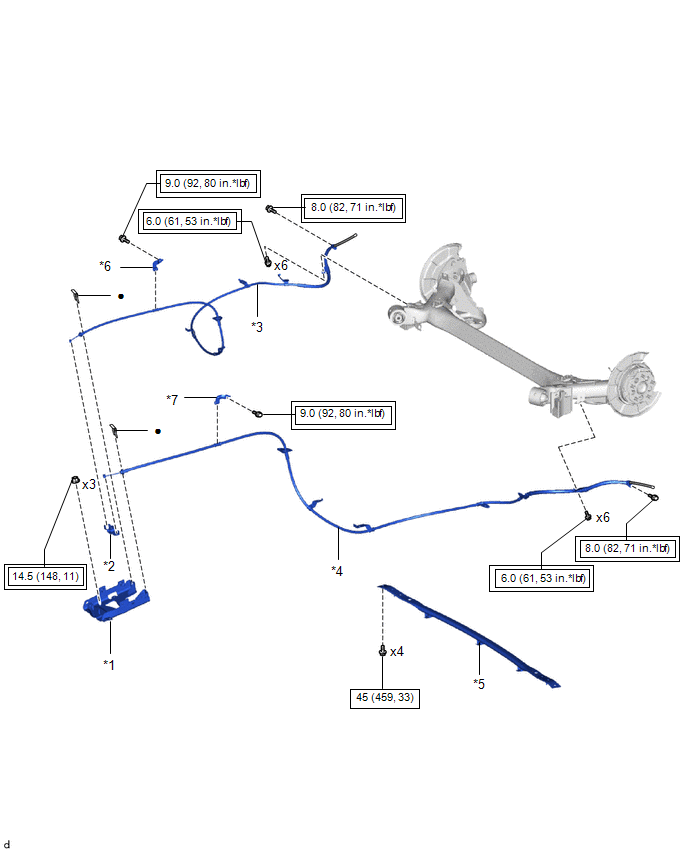

| Callout | Description | Callout | Description |
| *1 | CABLE SUPPORT BRACKET | *2 | PARKING BRAKE EQUALIZER SUB-ASSEMBLY |
| *3 | NO. 2 PARKING BRAKE CABLE ASSEMBLY | *4 | NO. 3 PARKING BRAKE CABLE ASSEMBLY |
| *5 | REAR SUSPENSION BRACE SUB-ASSEMBLY | *6 | NO. 1 PARKING BRAKE CABLE CLAMP |
| *7 | NO. 2 PARKING BRAKE CABLE CLAMP | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) | N*m (kgf*cm, ft.*lbf): Specified torque | ||
| • | Non-reusable part | - | - |
