Reassembly [06/2015 - ]: Procedure

TEMPORARILY TIGHTEN REAR DISC BRAKE BLEEDER PLUG
1. Install the rear disc brake bleeder plug to the rear disc brake cylinder assembly.
  HINT:

  Fully tighten the rear disc brake bleeder plug after bleeding the system.
INSTALL REAR DISC BRAKE BLEEDER PLUG CAP
1. Install the rear disc brake bleeder plug cap to the rear disc brake bleeder plug.

INSTALL PISTON SEAL

Apply lithium soap base glycol grease to the entire circumference of a new piston seal.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Lithium Soap Base Glycol Grease

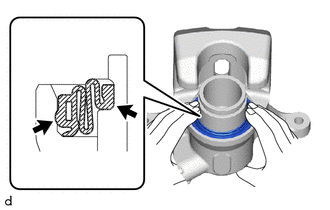

Install the piston seal to the rear disc brake cylinder assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	Piston Seal
*2	Rear Disc Brake Cylinder Assembly

NOTE:

Securely install the piston seal to the groove of the rear disc brake cylinder assembly.

INSTALL REAR DISC BRAKE PISTON

Apply a light layer of lithium soap base glycol grease to the entire circumference of a new cylinder boot.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	Cylinder Boot
*2	Rear Disc Brake Piston
	Lithium Soap Base Glycol Grease

Install the cylinder boot to the rear disc brake piston.
Apply a light layer of lithium soap base glycol grease to the contact surfaces of the rear disc brake piston, and install it to the rear disc brake cylinder assembly.
NOTE:
Do not forcibly install the rear disc brake piston into the rear disc brake cylinder assembly.

INSTALL CYLINDER BOOT

Install the cylinder boot to the rear disc brake cylinder assembly.

NOTE:

Do not damage the cylinder boot.
Securely install the cylinder boot into the groove of the rear disc brake cylinder assembly and groove of the rear disc brake piston.
