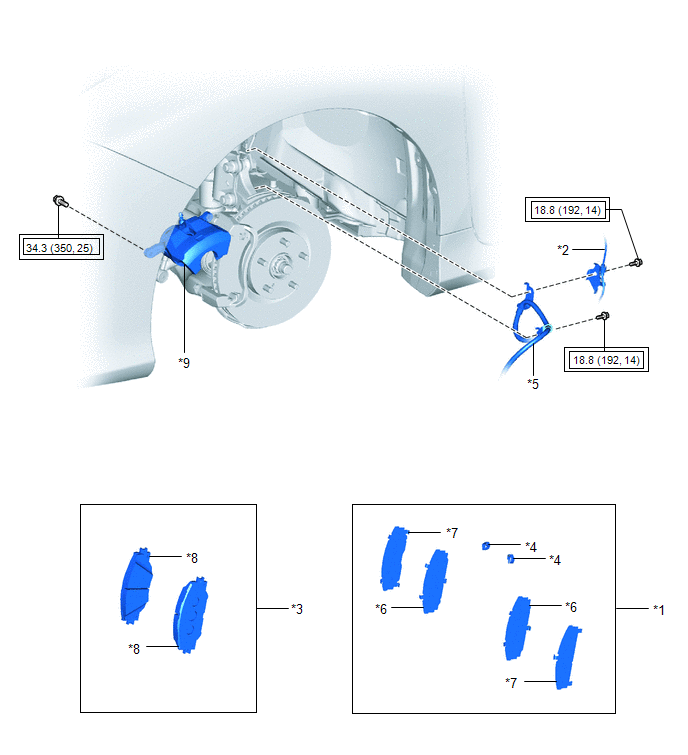

Components [06/2015 - ]
| Callout | Description | Callout | Description |
| *1 | FRONT ANTI-SQUEAL SHIM KIT | *2 | FRONT SPEED SENSOR |
| *3 | FRONT DISC BRAKE PAD KIT | *4 | NO. 1 PAD WEAR INDICATOR PLATE |
| *5 | FRONT FLEXIBLE HOSE | *6 | NO. 1 DISC BRAKE ANTI-SQUEAL SHIM |
| *7 | NO. 2 DISC BRAKE ANTI-SQUEAL SHIM | *8 | FRONT DISC BRAKE PAD |
| *9 | DISC BRAKE CYLINDER ASSEMBLY | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) | - | - |
