Components [06/2015 - ]

Fig 1: Front Brake Flexible Hose Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	LUGGAGE TRIM SERVICE HOLE COVER	*2	NEGATIVE AUXILIARY BATTERY TERMINAL
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : Nm (kgfcm, ft.*lbf)	-	-

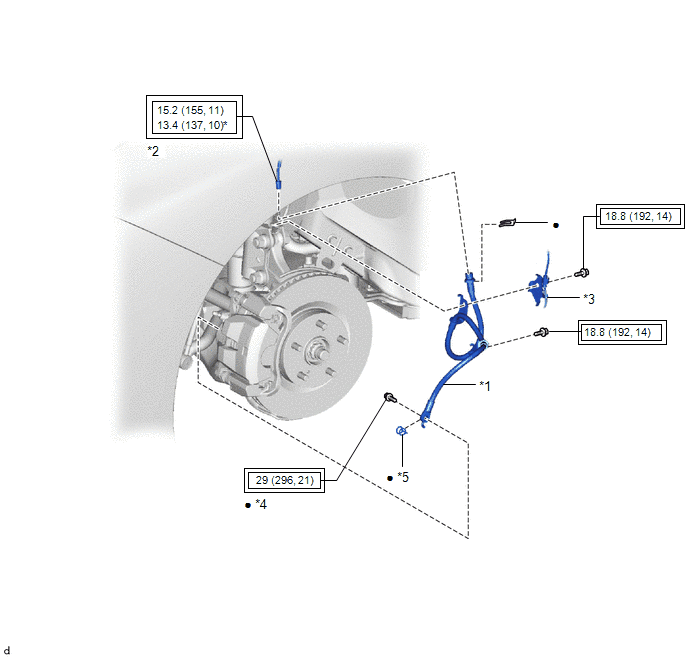

Fig 2: Front Brake Flexible Hose Replacement Components With Torque Specifications (2 Of 2)

Callout	Description	Callout	Description
*1	FRONT FLEXIBLE HOSE	*2	BRAKE TUBE
*3	FRONT SPEED SENSOR BRACKET	*4	UNION BOLT
*5	GASKET	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : Nm (kgfcm, ft.*lbf)	*	For use with union nut wrench
•	Non-reusable part	-	-
