Installation [06/2015 - ]: Procedure

  1. INSTALL SEAT HEATER SWITCH (for LH Side)

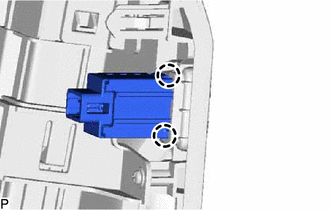

    1. Engage the claws to install the seat heater switch.
      GTY599267Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL SEAT HEATER SWITCH (for RH Side)

    HINT:

    Use the same procedure as for the LH side.

  3. INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 3
