Installation [06/2015 - ]: Procedure

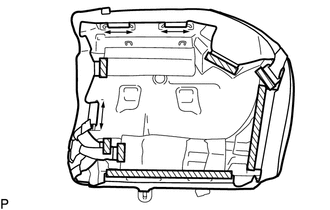

1. Temporarily install the rear seat cushion heater (separate type rear seat cushion cover).

   HINT:

   • When installing the seat cover, refer to the hints to prevent wrinkles in the rear seat cushion heater (separate type rear seatback cover).

     Refer to PRECAUTION [06/2015 - ]

   • In stitch:
     1. As shown in the illustration, adjust the cover seam allowance portions so that they are in the same direction.

        Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Using hog ring pliers, securely install 14 new hog rings in the order shown in the illustration.
   NOTE:

   • Be careful not to damage or contaminate the rear seat cushion heater (separate type rear seatback cover).
   • Align the centers of the straps with the center of the rear seat cushion pad so that wrinkles do not form, and securely fasten the hog rings as shown in the illustration.

     Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

     *1	Hog Ring
     *a	Hog Ring Pliers

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

3. Engage the J hooks and hooks to install the rear seat cushion heater (separate type rear seat cushion cover).

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

See step  6
