Components [06/2015 - ]

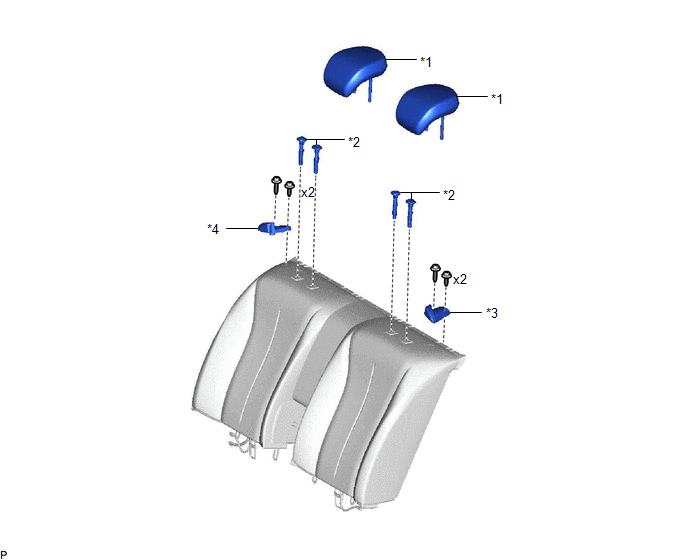

Fig 1: Seat Back Heater (For Rear Side) Replacement Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	REAR SEAT HEADREST ASSEMBLY	*2	REAR SEAT HEADREST SUPPORT
*3	REAR SEAT SHOULDER BELT GUIDE LH	*4	REAR SEAT SHOULDER BELT GUIDE RH

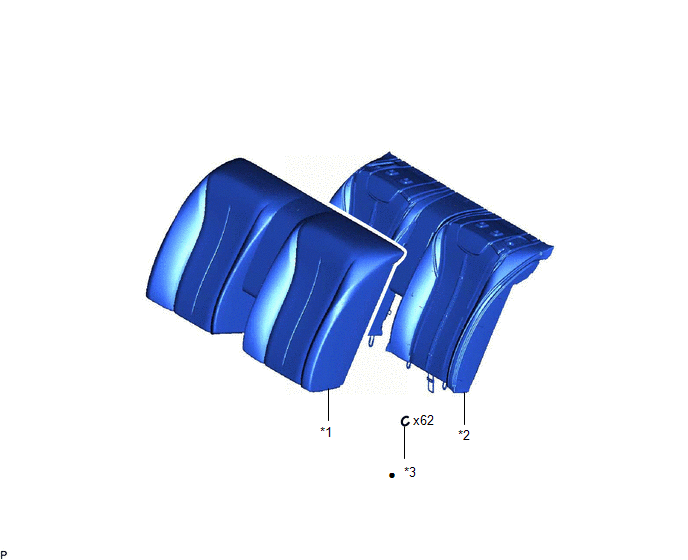

Fig 2: Seat Back Heater (For Rear Side) Replacement Components (2 Of 2)

*1	REAR SEATBACK HEATER (BENCH TYPE REAR SEATBACK COVER)	*2	REAR SEATBACK PAD
*3	Hog Ring	-	-
•	Non-reusable part	-	-
