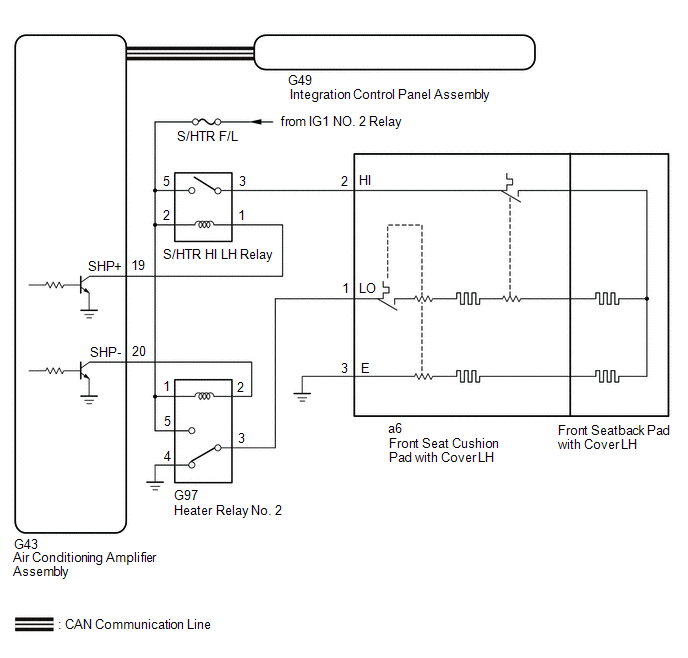

Seat Heater for Front Left Seat does not Operate [06/2015 - ]: Wiring Diagram

GTY553153

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
