Parts Location [06/2015 - ]: Illustration

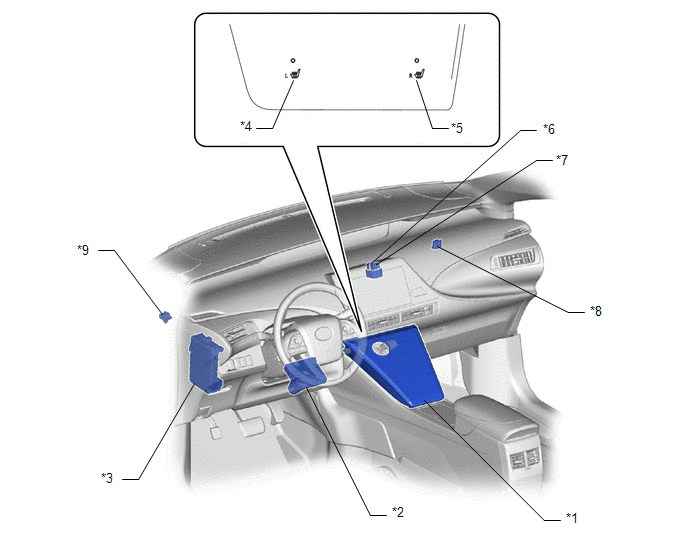

| *1 | INTEGRATION CONTROL PANEL ASSEMBLY | *2 | AIR CONDITIONING AMPLIFIER ASSEMBLY |
| *3 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - S/HTR F/R FUSE - S/HTR F/L FUSE - S/HTR RR FUSE |
*4 | SEAT HEATER SWITCH LH |
| *5 | SEAT HEATER SWITCH RH | *6 | S/HTR HI RH RELAY |
| *7 | S/HTR HI LH RELAY | *8 | HEATER RELAY NO. 1 |
| *9 | HEATER RELAY NO. 2 | - | - |

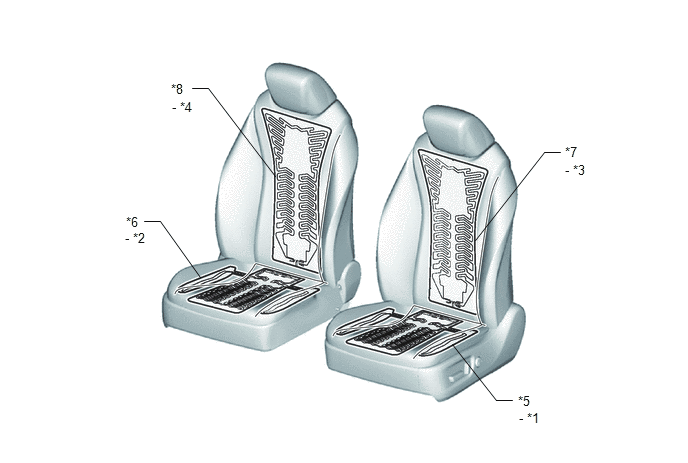

| *1 | FRONT SEAT CUSHION HEATER LH | *2 | FRONT SEAT CUSHION HEATER RH |
| *3 | FRONT SEATBACK HEATER LH | *4 | FRONT SEATBACK HEATER RH |
| *5 | FRONT SEAT CUSHION PAD WITH COVER LH | *6 | FRONT SEAT CUSHION PAD WITH COVER RH |
| *7 | FRONT SEATBACK PAD WITH COVER LH | *8 | FRONT SEATBACK PAD WITH COVER RH |

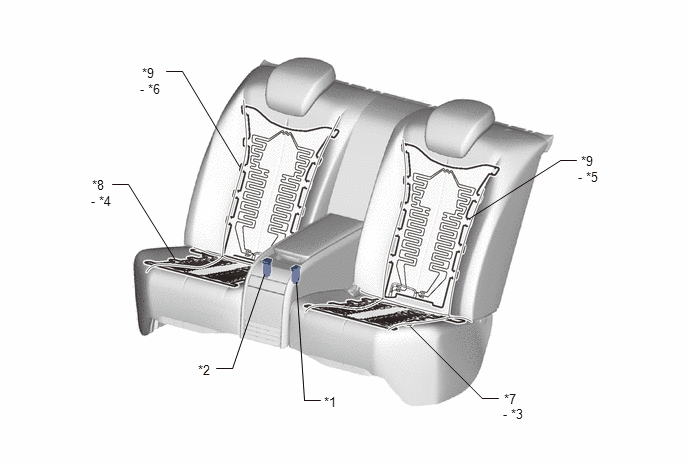

| *1 | REAR SEAT HEATER SWITCH LH | *2 | REAR SEAT HEATER SWITCH RH |
| *3 | REAR SEAT CUSHION HEATER LH | *4 | REAR SEAT CUSHION HEATER RH |
| *5 | REAR SEATBACK HEATER LH | *6 | REAR SEATBACK HEATER RH |
| *7 | REAR SEAT CUSHION COVER SUB-ASSEMBLY LH | *8 | REAR SEAT CUSHION COVER SUB-ASSEMBLY RH |
| *9 | REAR SEATBACK COVER SUB-ASSEMBLY | - | - |
